Simulation and CFD tools for plant engineering and process engineering

Simulations in plant engineering specifically help to find solutions for energy efficiency, process improvement, cost reduction, plant optimization and safety.

In particular, optimizing the design before production and construction is ideal for saving time and costs. Automated CFD helps to design particularly complex processes with variant studies and standardize development.

DHCAE Tools has successfully used CFD analyses in the following application areas of process engineering:

• Identification of weak points such as flow separation and prevention by installing baffles
• Localization and optimization of uneven volume flow distributions
• Determination of spray properties after atomization
• Cooling of hot gases through evaporation of sprays
• Droplet separation processes
• Optimization of piping systems and inflows into chimneys
• Particle retention on filters and filter loads
• Modeling of SCR processes
• Mixing processes
• Separation of solid particles from loaded gases in cyclones, skimmers etc.
• Liquid distribution on spray nozzles in pipe systems

In process engineering, the engineer often has to deal with complex mixing processes of different phases, e.g. bubbles in liquids, free surfaces between liquids and gases or complex particle flows. DHCAE Tools has extensive experience with multiphase flows and this is where the use of automated tools is particularly efficient.

Example: Quench for cooling hot gases by droplet evaporation

Example: Filter system for process engineering

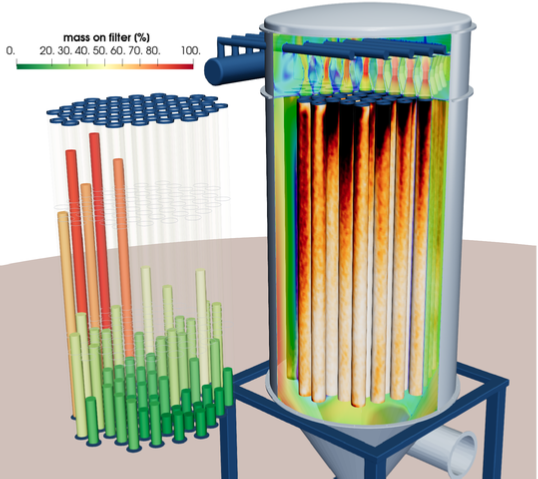

Determination of the mass loading of the individual filters

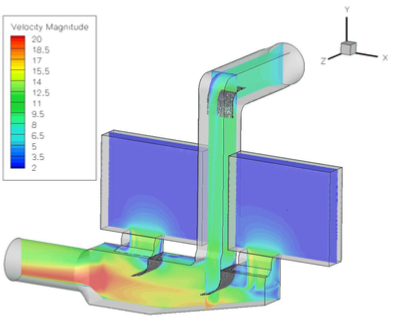

Example: Flow optimization  through variants of baffle arrangements

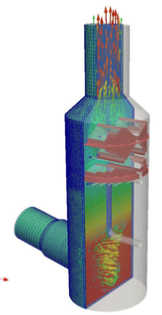

Example: Droplet

seperator
